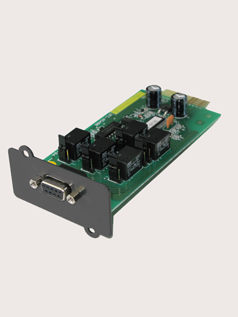

Relay Cards for UPS systems
This relay card is an option for UPS series Power B. PRO / C. / C.R / D. / 1. and 1.M and enables the communication via potential free contacts. The contacts can be configured as opener or shutter. The status notifications will be transmitted by a 9 pin Sub-D socket. The relay cards are optimized for the IBM AS400 but can also be used for other applications.
Relay Cards - Key Features
- Communication card for expansion slot
- Potential free contacts, configurable as opener or shutter (not at Relay card_B)
- Maximum contact rating: AC/DC ≤ 24V / 0,5 A
Relay Card - Specifications
Relaycard | ||
|---|---|---|
Compatibility | Power C. / C.R / 1. / 1.M | |
Contacts configurable | as opener or shutter | |
Outlets | 9 pin Sub-D socket | |
Scope of delivery | Relay card, operating instruction (printed) | |
Dimensions (W x H x D) | 60 mm x 44 mm x 120 mm | |
Weight | 60 g | |
Relay Cards - Versions
- Relay Card for Power C. / C:R / 1. / 1.M
- Relay Card for Power B. Pro
- Relay Card for Power d.
