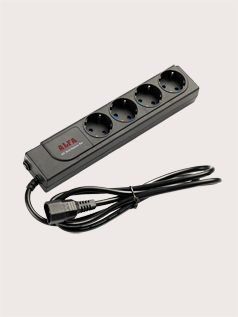

PDU Rack

Our power distribution units are designed to distribute power from UPS outlets to multiple connected loads. Various models are available with a choice of grounded IEC320 C13 and C19 sockets for connecting equipment. The sockets are protected against overloading, either individually or in pairs, depending on the connector type. LEDs indicate the current operating state.

PDU - Key Features

- Modular construction
- Choice of outlet socket types
- Micro fuse on supply circuit for additional protection
- High-quality aluminum enclosure
- Flexible installation options
- 1m connecting cord

PDU - Specifications

PDU 10-1

PDU 10-2

PDU 16-1

PDU 16-2

Compatibility

Power A. / B. / B.PRO / C. / C.R / D.
and MBS 2000/3000/6000

              Power B.3000 / C.3000 /

                 C.3000R and MBS 3000

Input voltage

     230 Vac, 50 / 60 Hz

Input connector

IEC320 – C14 (10 A)

         IEC320 - C20 (16A)

Output connectors

6 x IEC320 C13 (10A)
protected in pairs

6 x grounded outlets
protected centrally

4 x IEC320 C13 (10A)
protected in pairs
3 x IEC320 C19 (16A)

3 x grounded outlets -
3 x IEC320 C19 (16 A)

Dimensions (W x H x D)

483mm (429mm w/o flanges) x 44 mm (1 U) x 44 mm

Weight

0,7 kg

0,7 kg

0,7 kg

0,7 kg
