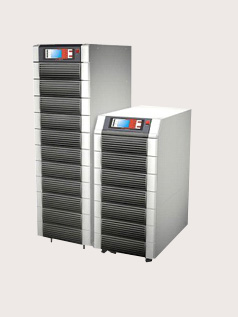

Power 3.M 2.0 Modular UPS up to 120 kVA with 20 kVA modules

• Hot-swappable modular design – Plug & Play adaption in case of changing power needs
• max. 4 respectively 6 modules, each module with 20 kVA
• IGBT technology, high input power factpr with low input THDI
• N+x module redundancy
• Easy to operate and easy to maintain
• VFI (double conversion) technology
• Parallel configuration up to 4 units for higher power or redundancy purposes
• Redundant DSP control
• High efficiency (up to 95% in online mode)
• Compact footprint

Power 3.M 2.0:
Implementation of the VFI (double conversion) technology of ALFA’s Power 3.M 2.0 protects your system reliably against all power supply problems, e.g. power failure, surges, under voltage, voltage fluctuations, non-linear distortions, frequency fluctuations, etc.

Power 3.M 2.0 is an uninterruptible power supply which is highly reliable and efficient. The modular design of Power 3.M 2.0 permits a flexible increase of tSE UPS power up to 480 kVA maximum with 20 kVA automatic contact hot-swappable modules. This technology allows the system to be extended during operation. Modules are hot-swappable. Additional cabling is not necessary.

Parallel operation N+X technology allows for flexible adjustment of the power capacity of your UPS at any time. The modular construction provides active parallel redundancy and thereby a high safety reservoir.

Cabinets:

• Power 3.M 80
• Power 3.M 120


• SNMP Adapter
• SNMP Adapter Pro
• Modbus card
• Relay card
• Temperature depending charging sensor
• Battery current measurement
