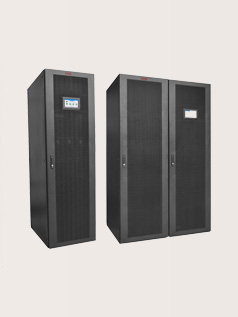

Power Plus M600 Modular 3-phase UPS, 30 - 600 kVA

Modularity: Evolve with your needs at optimized cost

Your business is constantly evolving and so is your data center infrastructure or production line. The Power Plus M600 is the right answer to this. It offers a scalable solution by providing the ability to add or remove power modules in the event of growth or decrease of the protected load, complete flexibility, n+x inbuilt redundancy as well as automatic and predictive management of power. Power Plus M600 combines the best transformer-less IGBT technology with a modular architecture to improve the performance of the whole system. It reduces power losses, energy consumption and operating costs.

Scalable architecture for optimum performance and exibility

The modular and scalable architecture of Power Plus M600 is designed to maximize savings in terms of foot print (m2), power installed (kVA), electrical system (cabling and protection devices), security (MTTR and MTBF) and most importantly, energy management (kWh and costs). Moreover, it allows for an increase or decrease in power installed depending upon the needs of the load.

Each power module has independent hardware and controlability, able to operate and coordinate with other modules within the system. The control of power modules connected in parallel is decentralized in the single 30 kVA device (no centralized control system). The omission of the master/ slave architecture, eliminates any possibility of a problem due to the failure of a single power module.

The common frames are available in three different dimensions: able to connect up to 6, 10 or 20 power modules (including redundancy). The frames allow for input/output connections to the electrical system and to the protected load, with centralized static and manual bypass lines. This infrastructure provides a unique platform for viewing and managing all parameters, as well as historical events as tSE UPS frame, the single module, the electrical system and the supplied load are all connected. Information about preventive or corrective maintenance is then easily accessible through the LCD touch screen display.
